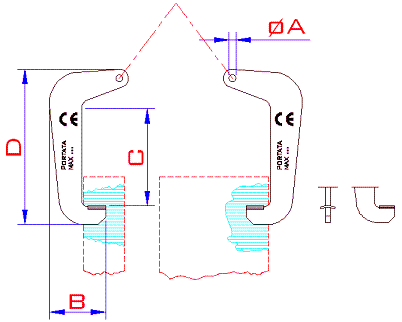

Coils brackets - Type 1

Hook-shaped brackets couple with low weight and dimensions for the lifting of coils. The two brackets can be joined by means of connecting elements in order to semplify load operation.

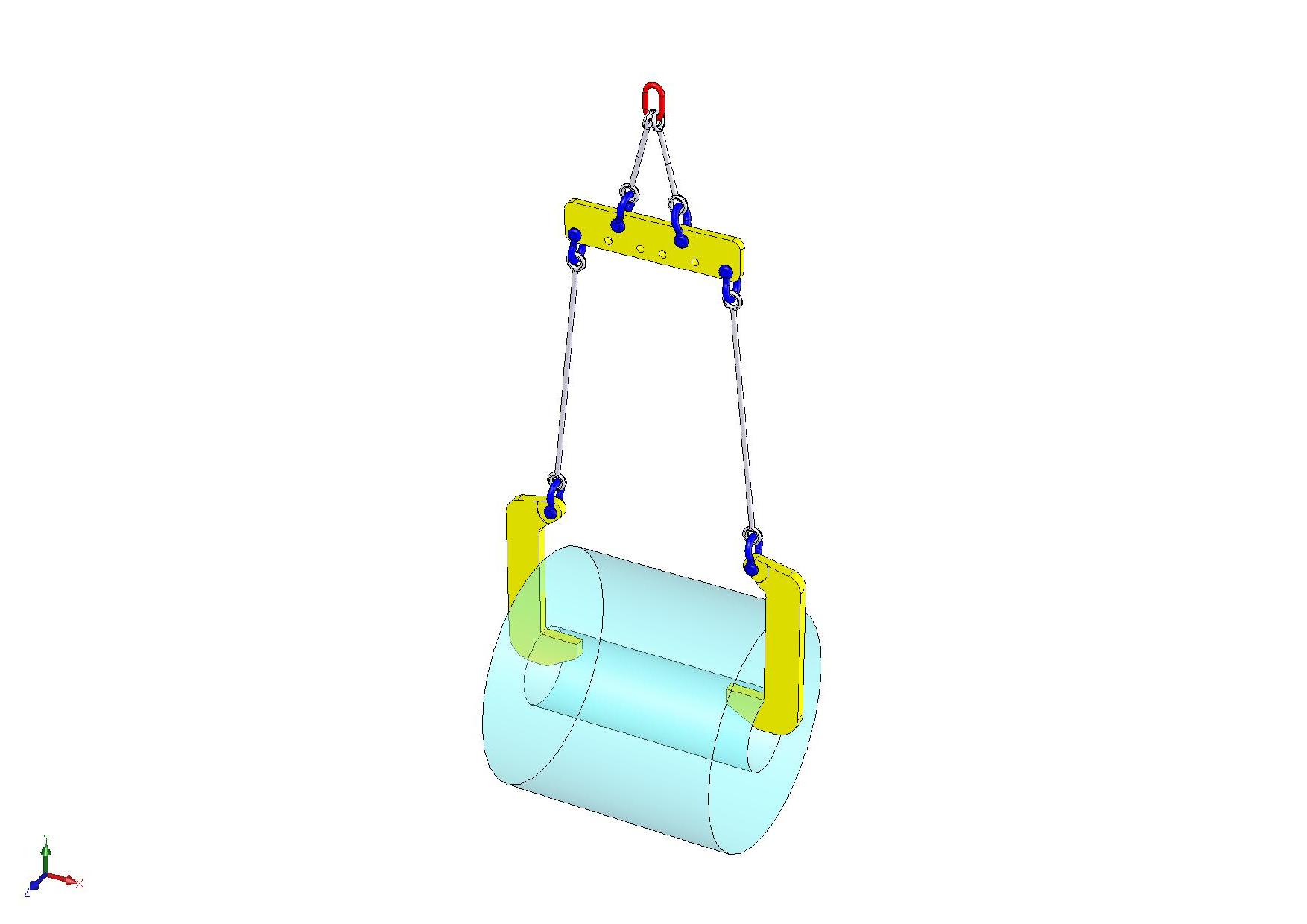

In addition there is the version with adjustable beam, in order to lift coils with different width (from 500 to 2000 mm, see figures).

Code
Capacity [kg]
Dimensions [mm]
A
B
C
D
SDC 100
5000+5000
40
300
600
970
SDC 200
10000+10000
50
370
650
1020
SDC 300
15000+15000
60
400
850
1240


In addition to standard models, we are able to develop the best equipment, according to your dimensional and capacity needs.
All products are supplied with exhaustive technical documentation about use and maintainance and CE certification. On demand we can provide the technical calculations report, stamped by qualified technician.

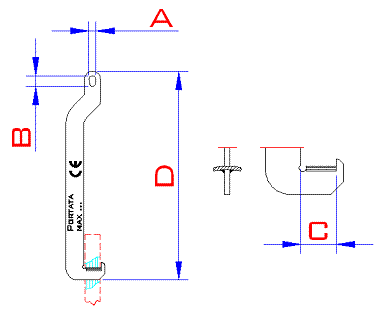

Coils brackets - Type 2

Bracket for the lifting of coils with small width.

Code
Capacity [kg]
Dimensions [mm]
A
B
C
D
SSc 15
1500
40
60
100
1180
SSc 25
2500
66
100
150
1180
SSc 40
4000
72
120
200
1180


In addition to standard models, we are able to develop the best equipment, according to your dimensional and capacity needs.
All products are supplied with exhaustive technical documentation about use and maintainance and CE certification. On demand we can provide the technical calculations report, stamped by qualified technician.
