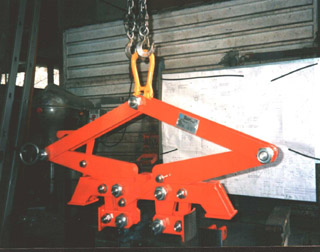

Coils grips with 2 or 4 arms

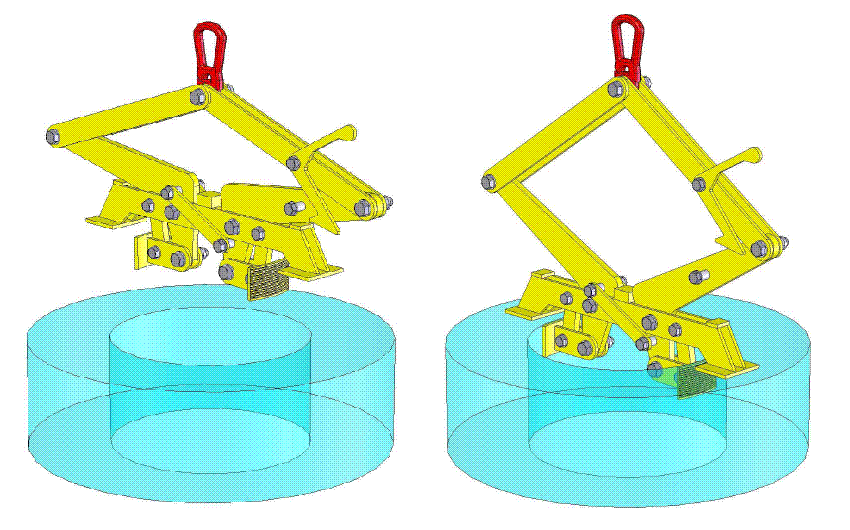

Coils grips are conceived in order to lift plate coils with internal side hold, using auto-expansive "shoes", which can lift the object by means of friction between surfaces.

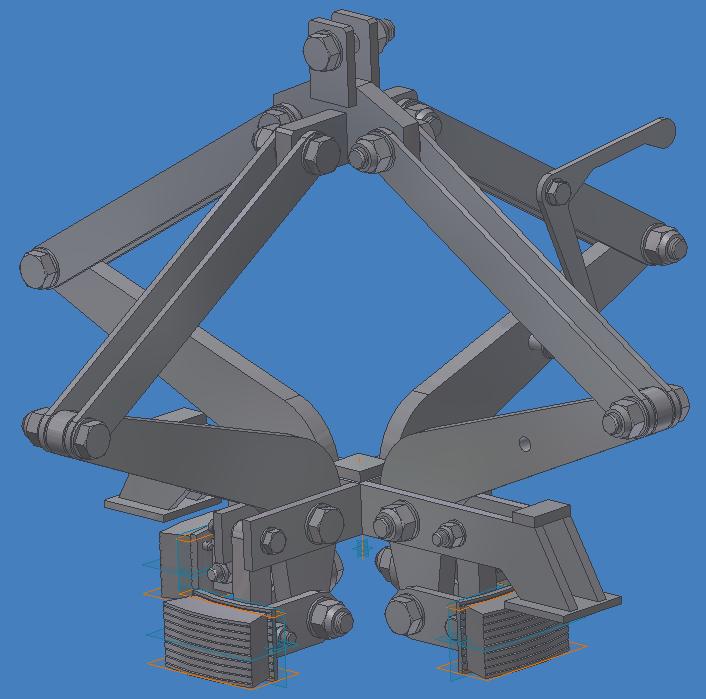

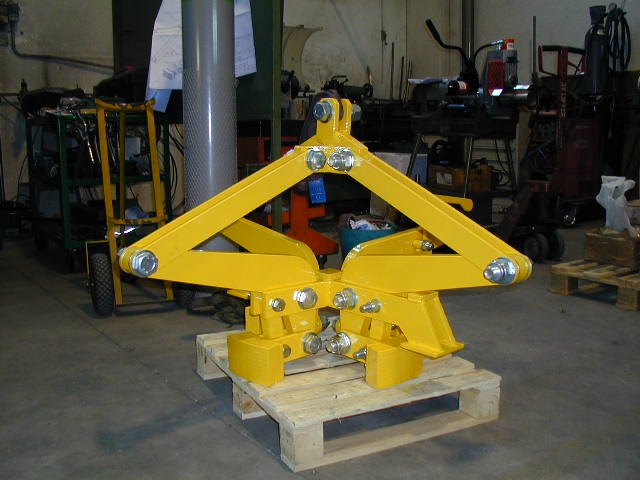

Devices can be supplied in two versions: with 2 or 4 holding-shoes. The 4 shoes solution is useful to prevent coils oval-shaping.
A blocking lever is used to keep the holding-shoes opened during coil insertion.
Grips are arranged to hold coils with internal diameter from 500 to 600 mm.
Code |
Capacity [kg] |

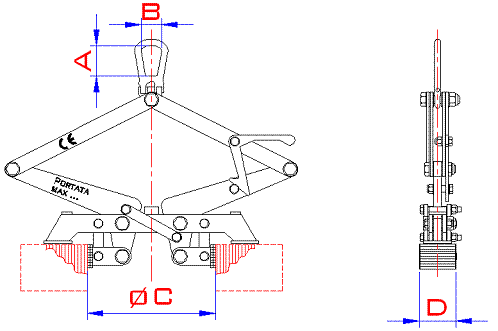

Dimensions [mm] |
|||
A |
B |
C |
D |
||
MC 10 |
1000 |
80 |
66 |
300/500 |
120 |
MC 20 |
2000 |
120 |
72 |
500 |
140 |
MC 30 |
3000 |
120 |
72 |
500 |
150 |
In addition to standard models, we are able to develop the best equipment, according to your dimensional and capacity needs.
All products are supplied with exhaustive technical documentation about use and maintainance and CE certification. On demand we can provide the technical calculations report, stamped by qualified technician.
 |
 |
 |
 |
